Machine light MLe Planar WL

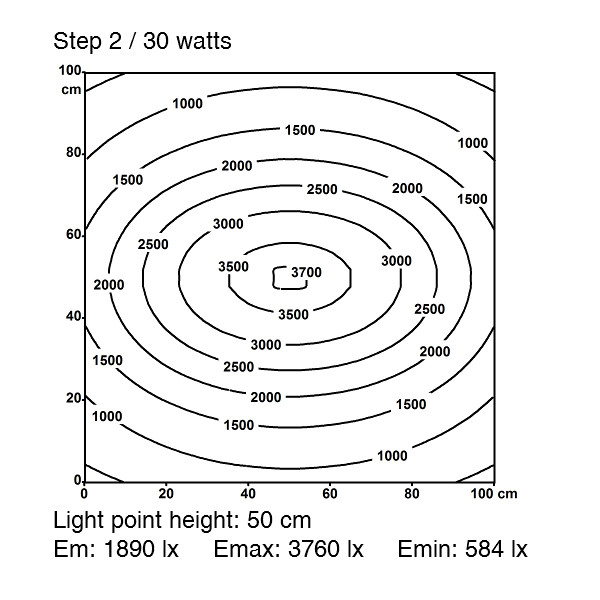

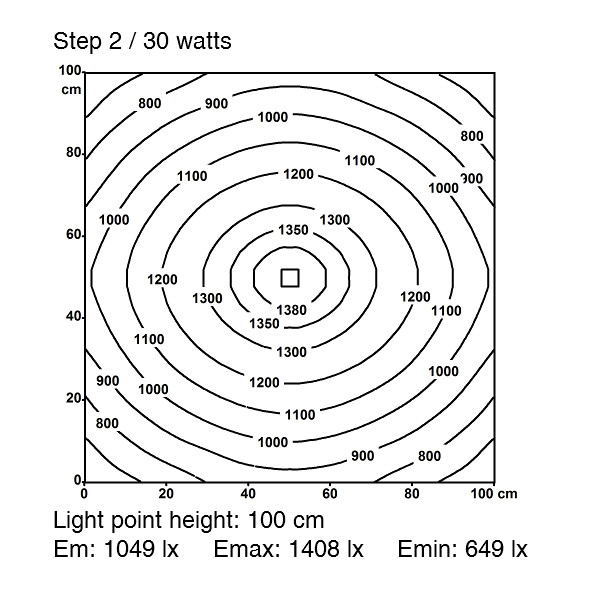

A grid light in LED technology. The reflective light grid offers a very homogenous glare-free light and makes the MLe Planar WL an ideal workplace light. MLe Planar WL is equipped with a step switch and can be switched to a light output of 10 watts or 30 watts respectively switched off.

MLe Planar WL - Features

  Table on small display with scroll bar!

Power supply 10 Watts (Step 1) / 30 Watts (Step 2)
Connected load 24 V DC (-10 % / +15 %)
Connection type 3 m cable or M12 plug connector
Casing material anodised aluminium
Protection type IP 20
Protection class III
Lamp cover 4 mm PMMA and light grid
Max. ambient temperature 50° C

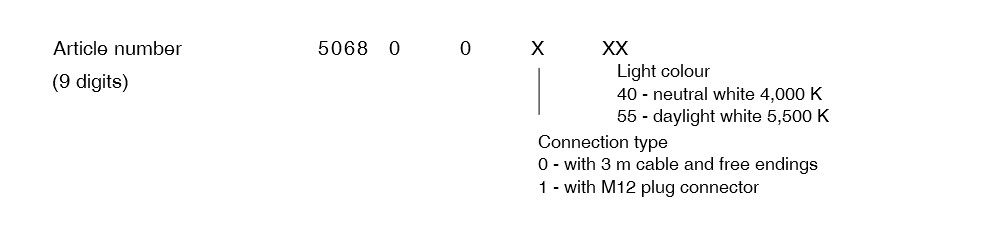

MLe Planar WL - Order versions

MLe Planar WL - Order versions
