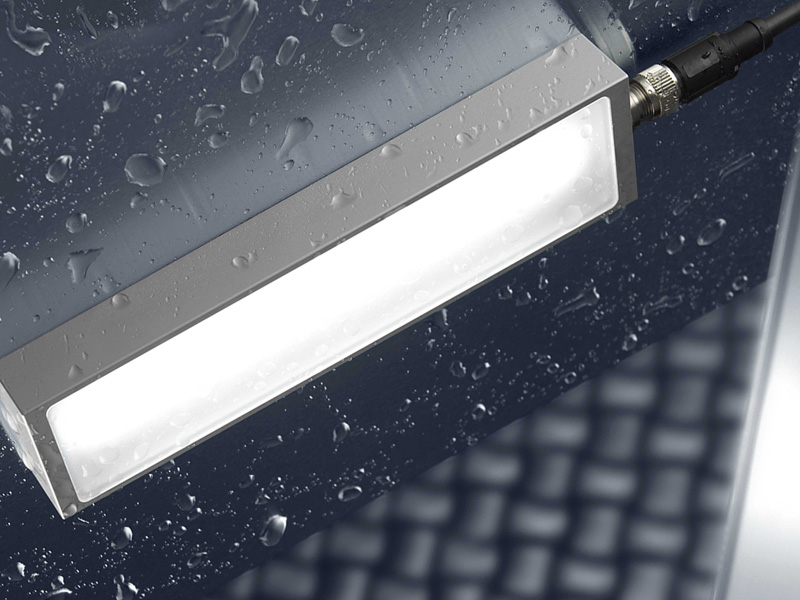

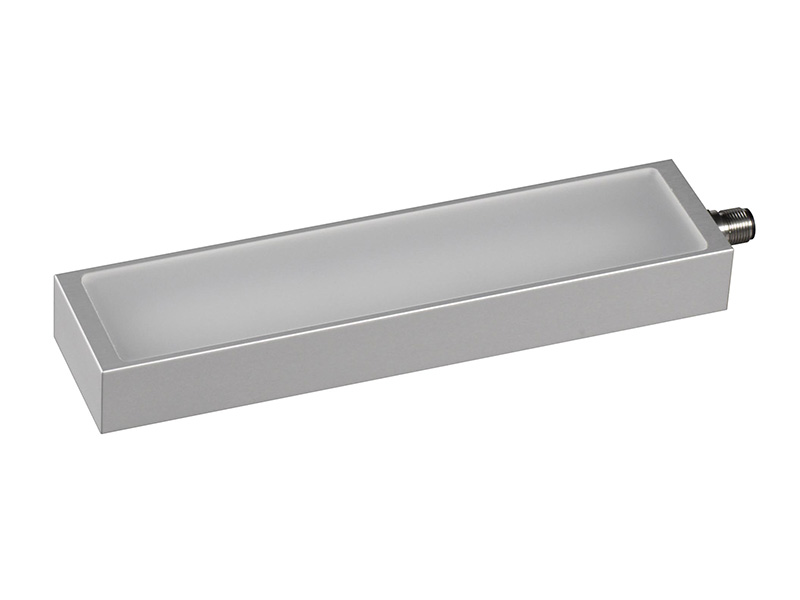

Machine light MLe Genio

This also very compact LED machine light is an alternative to conventional lights with fluorescent lamps. The optional electric connection with functional earth ensures a special protection against system-related disorder. The light cover can be selected from satin-finish tempered glass or diffuse acrylic glass for a particularly homogenous illumation without LED cast shadows. The mounting is done from the rear with M6 screws.



MLe Genio - Features

  Table on small display with scroll bar!

Power supply 6 Watts
Connected load 24 V DC (-10 % / +15 %)
Connection type 3 m cable or M12 plug connector
Casing material anodised aluminium
Protection type IP 67
Protection class III

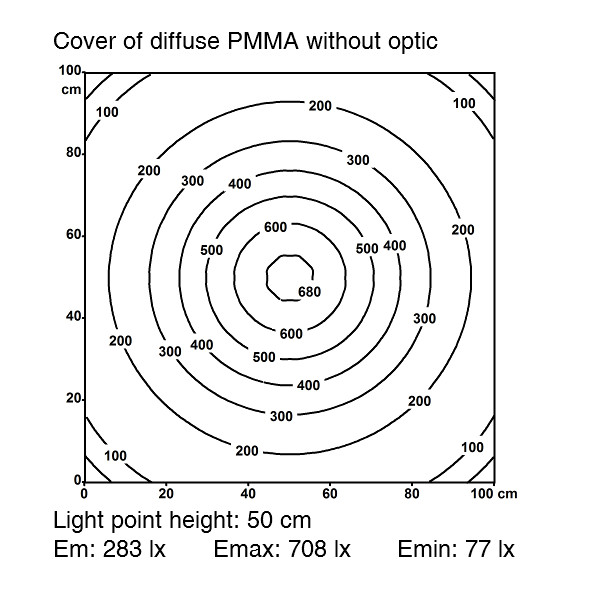

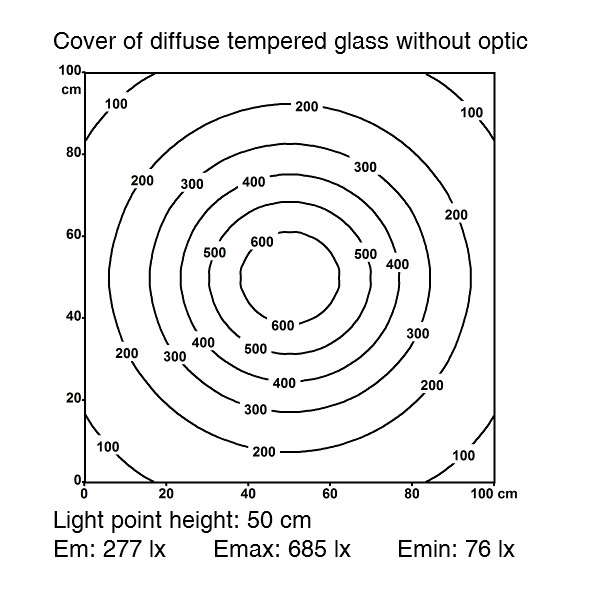

Lamp cover 3 mm tempered glass or PMMA
Max. ambient temperature 50° C

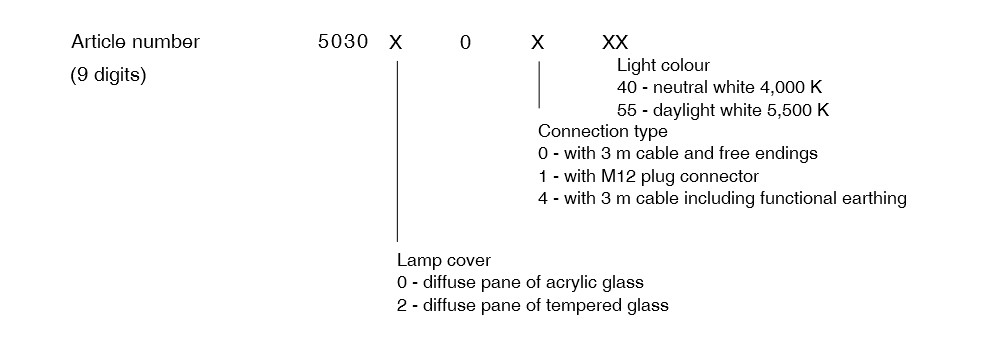

MLe Genio - Order versions

MLe Genio - Order versions
