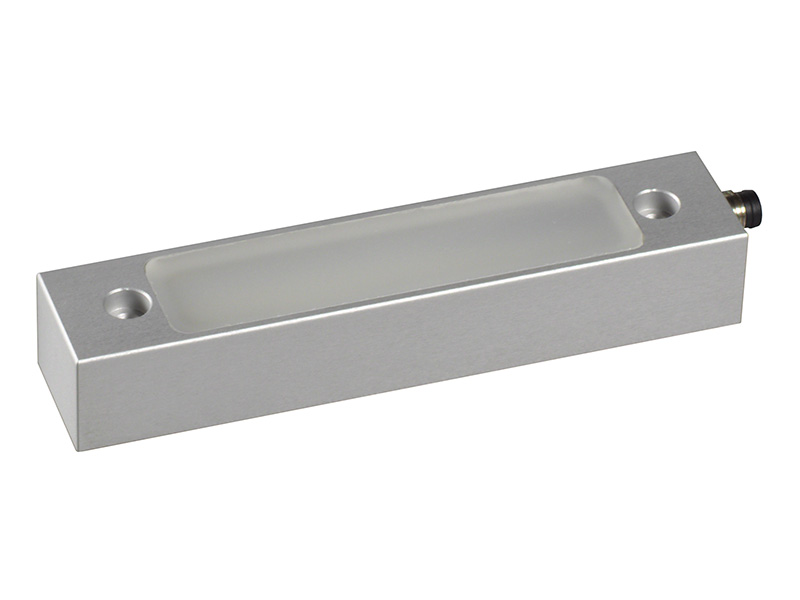

Machine Light MLe Compact

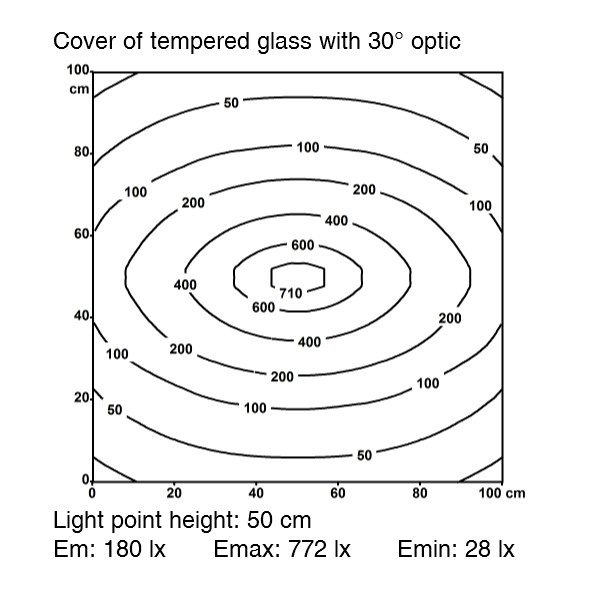

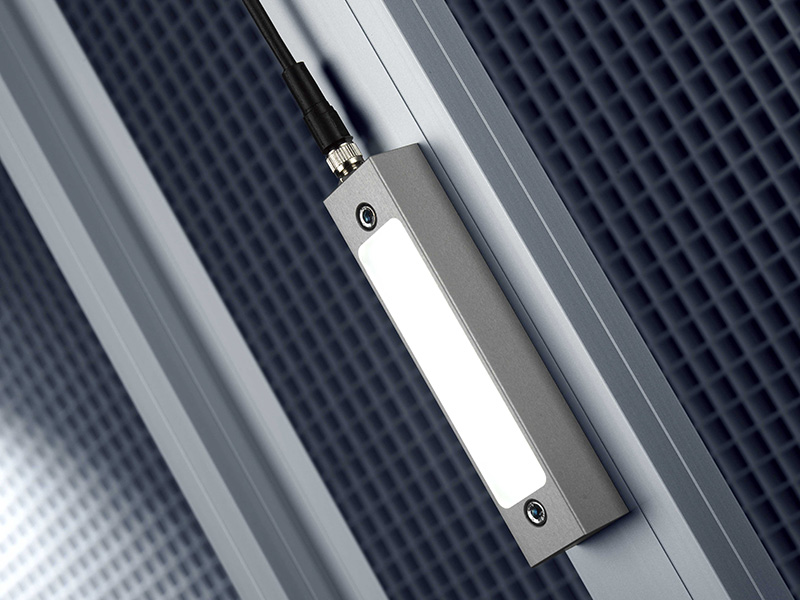

The compact machine light for the smallest gap and excellent luminous efficacy on smallest space. Optionally this light is available with a special optic that focuses the beam resp. light emission angle to approx. 30°. The light cover can be selected from satin-finish tempered glass or diffuse acrylic glass. The mounting is done conveniently from the front and is nevertheless protected against dust and water according to IP 67.

MLe Compact - Features

  Table on small display with scroll bar!

Power supply 4 Watts
Connected load 24 V DC (-10 % / +15 %)
Connection type 3 m cable or M8 plug connector
Casing material anodised aluminium
Protection type IP 67
Protection class III

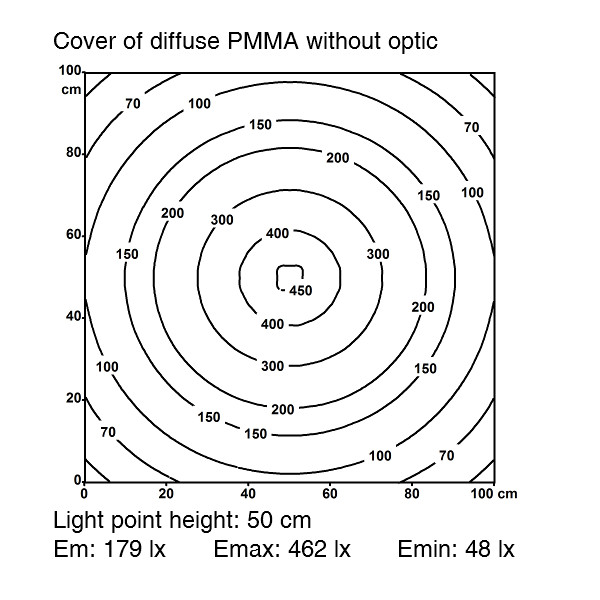

Lamp cover 4 mm tempered glass or PMMA
Max. ambient temperature 50° C

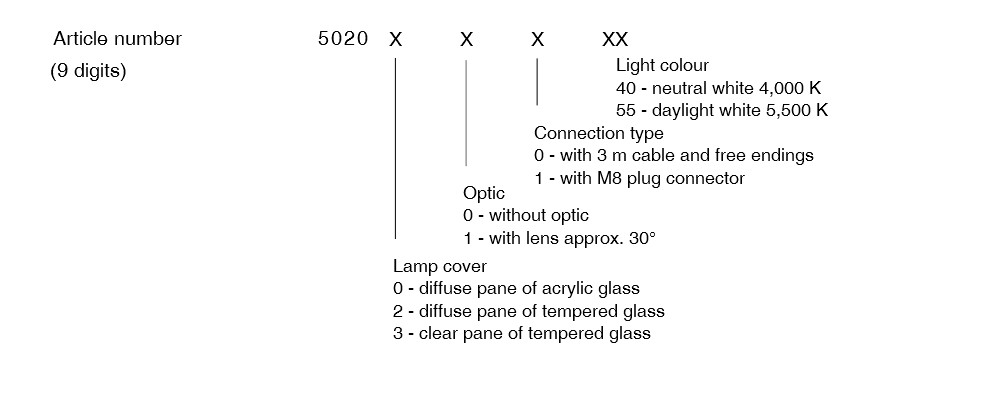

MLe Compact - Order versions

MLe Compact - Order versions
