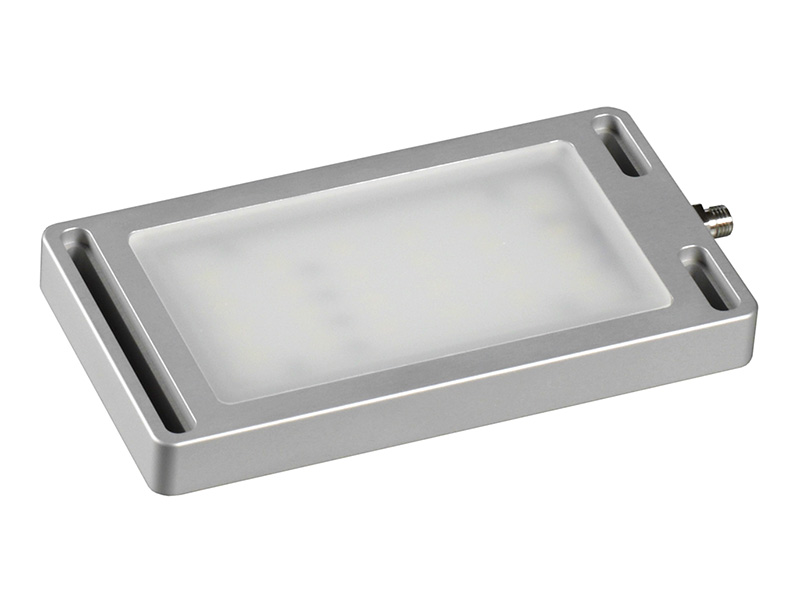

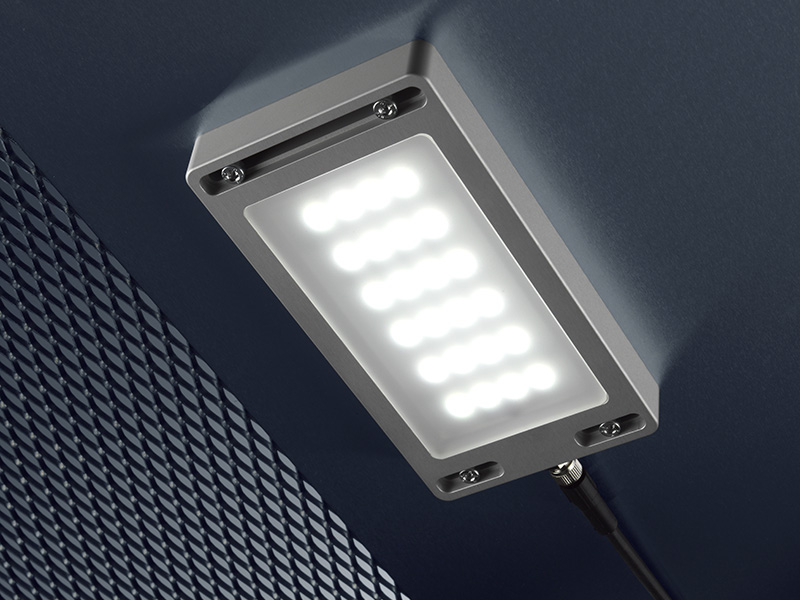

Machine light MLe Planar

MLe Planar – particularly flat machine lights with low installation height in different lengths. A robust light with anodised aluminium casing and protection class IP67 for use in coarse environments. This light is available in various equipment options. Hereafter we present the MLe Planar 150.

MLe Planar 150 - Features

  Table on small display with scroll bar!

Power supply 7 Watts
Connected load 24 V DC (-10 % / +15 %)
Connection type 3 m cable or M8 plug connector
Casing material anodised aluminium
Protection type IP 67
Protection class III
Lamp cover 4 mm tempered glass or PMMA
Max. ambient temperature 50° C

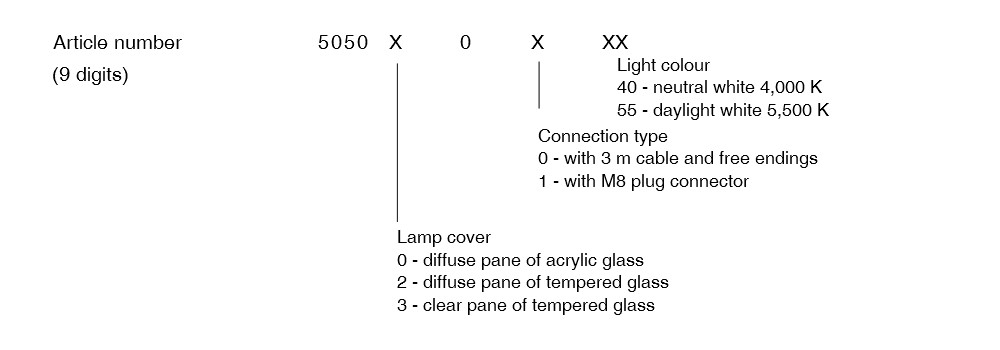

MLe Planar 150 - Order versions

MLe Planar 150 - Order versions
